Ghalo Series 1000*250mm 750*250mmIndoor Long Strip LED Display With Quick Wall-Mounted Installation (,P1.56, P1.953,P2.6mm)
Product Features
Ultra-thin and lightweight design, with a single cabinet weight of only 4kg.
No steel structure required, direct wall-mounted installation.
100% front maintenance design.

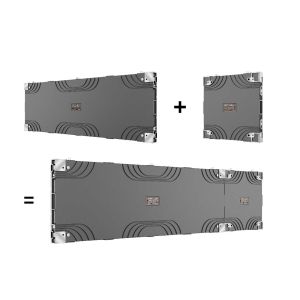

Two cabinet sizes (7250250mm and 1000250mm) support mixed assembly.
Case 1: Ghalo Series Display - Wall-Mounted Smart Conference Room
A German company's smart conference room features a square screen composed of Ghalo P2.6mm modules at the center of the rectangular conference table. Each side of the screen is made of 750250mm cabinets, with a display size of 12501500mm per side. The high-definition image quality allows participants around the table to view meeting materials head-on from any direction.The main screen in the conference room is a 1500*4000mm LED display of the same specification, installed on the wall to save space while being aesthetically pleasing and practical. Equipped with a dedicated video controller, it supports split-screen display of 2, 4 up to 16 windows, suitable for command centers and multi-site distributed meeting scenarios.
Case 2: Double-Sided LED Advertising Archway in Shopping Mall
Located in Budapest, Hungary, this project also adopts Ghalo P2.6mm modules with 750*250mm cabinets. A total of 11 double-sided archways (103㎡ in total) were installed using the wall-mounted method, creating LED archway displays suitable for close-range viewing and enhancing advertising reach.
Ghalo series Parameters:
| Parameter | P1.5 | P1.9 | P2.6 |
| Pixel Pitch (mm) | 1.5625 | 1.953 | 2.604 |
| Pixel Density (/m²) | 409,600 | 262,144 | 147,456 |
| LED Model | SMD1010 | SMD1515 | SMD1515 |
| White Balance Brightness (cd/m²) | 1000 | 1000 | 1000 |
| Scanning | 1/40 | 1/32 | 1/24 |
| Cabinet Size (mm) | 1000×250×38 / 750×250×38 | ||
| Module Size (mm) | 250×250×3 | ||
| Cabinet Material | Die-cast Aluminum | ||
| Cabinet Weight | 8.5kg / 10.5kg | ||
| Protection Level | IP31 | ||
| Maintenance Method | Front Maintenance | ||
| Max Power Consumption (/m²) | 600W | ||
| Avg. Power Consumption (/m²) | 150W | ||
| Refresh Rate | 3840-7680Hz | ||
| Grayscale Level | 13-16bit | ||
| Viewing Angle | H140°, V140° | ||
| Input Voltage | AC100~240V (50-60Hz) | ||
| Operating Temperature | -20℃~+60℃ | ||
