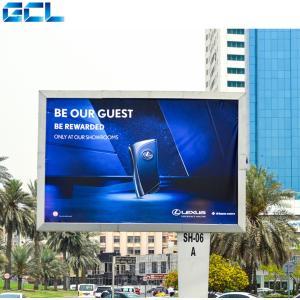

Gsurface V Outdoor P3.91 P4.8 P6.25 P7.81 P10mm Waterproof Full Color LED Display Adverting Billboard
Product Features:
Supports both front and rear maintenance methods
- The module can be removed and maintained from both the front and rear, making installation and maintenance more convenient.
- The independent power box and module power and module signal adopt a modular design, meeting a wider range of installation environment requirements!
Efficient Self cooling performance:
The power box is equipped with a built-in fan for heat dissipation, and the box, module, and power back cover have excellent self cooling effect, eliminating the need for air conditioning to cool down and saving electricity
High refreshSwitching without blinking:
Adopting a high refresh rate IC with a refresh rate of 3840Hz, the playback screen has no shaking, ghosting, or water ripple phenomenon!
Multiple sizes available, supports mixed box combinations
- Various size specifications available: 1000×1000mm / 1000×750mm / 1000×500mm
- Supports mixing different specifications of cabinets, allowing flexible product matching, suitable for various installation spaces, and helps reduce inventory costs.
Waterproof Module；Support box mixing；Front and rear maintenance；Modules are left and right；Express Setup；High definition and brightness
Main parameters of Gsurface V:
| Product | P3.91 | P4.81 | P6.25 | P7.81 | P10.4 |
| Pitch | 3.91mm | 4.81mm | 6.25mm | 7.81mm | 10.4mm |
| Density(pixels/m²) | 65536 | 43264 | 25600 | 16384 | 9216 |
| LED Type | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Brightness | 5500nits | 5500nits | 6500nits | 6500nits | 6500nits |
| Scan Method | 1/8 | 1/13 | 1/6 | 1/4 | 1/2 |
| Panel Size | 1000×1000×78mm | ||||
| Module Size | 500×250mm | ||||
| Panel Material | Profile Aluminum | ||||
| Panel Weight | 29kg | ||||
| Protection Level | IP65 | ||||
| Maintenance | Front&Rear Service | ||||
| Max Power Consumption | 600W/㎡ | 600W/㎡ | 650W/㎡ | 650W/㎡ | 650W/㎡ |
| Average Power Consumption | 200W/㎡ | 200W/㎡ | 210W/㎡ | 210W/㎡ | 210W/㎡ |
| Refresh Rate | 3840Hz | ||||
| Grey Scale | 13-16bit | ||||
| Viewing Angle | H140°,V120° | H140°,V120° | H140°,V120° | H140°,V120° | H140°,V120° |
| Voltage | AC100~240V(50-60Hz) | ||||
| Working Temperature | ’-30℃ to 60℃ | ||||
| Working Humidity | 10%-90%RH | ||||
| Color Temperature | 3000-9500K | ||||
| Certifications | CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO | ||||
